Clusters

Feature Overview

Item	Content
Applicable Role	Operator
Navigation Path	AI Infra(On-Prem) > Monitoring > Clusters
Page Route	/powerone/monitor/cluster
Managed Object	Configuration, status, and relationships on Clusters

Beginner Explanation

Cluster statistics are like health check reports for each equipment room. They compare capacity, health status, and resource watermarks across clusters to determine whether an issue is a local cluster problem or global resource shortage.

Terms

Term	Description
Cluster Capacity	Total CPU, memory, GPU/NPU, and other resources the cluster can provide.
Resource Watermark	Ratio of used resources to remaining resources.
Health Status	Whether cluster components, nodes, and scheduling capability are normal.

Recommended Operation Order

Confirm prerequisites for Cluster status, resource capacity, job count, and region/availability zone ownership, follow Main Operations, run Result Validation, and continue to the next page.

First-Time User Notes

Confirm that the task involves Configuration, status, and relationships on Clusters, and then follow the recommended order. If fields or state differ from expectations, check prerequisites before continuing downstream.

Prerequisites

1. The current account has cluster monitoring view permissions.
2. The target cluster has been registered and is within the monitorable scope.
3. Cluster capacity, node, and accelerator metrics have been collected.
4. The region or cluster scope to compare has been confirmed.

Page Description

Use this page to compare cluster status, resource capacity, job counts, and region or availability-zone ownership.

Cluster statistics are used to compare cluster capacity, health status, and resource watermarks across different regions or resource pools. Operators can use the cluster dimension to determine whether there is overall capacity shortage, collection exception, or a hotspot in a single cluster.

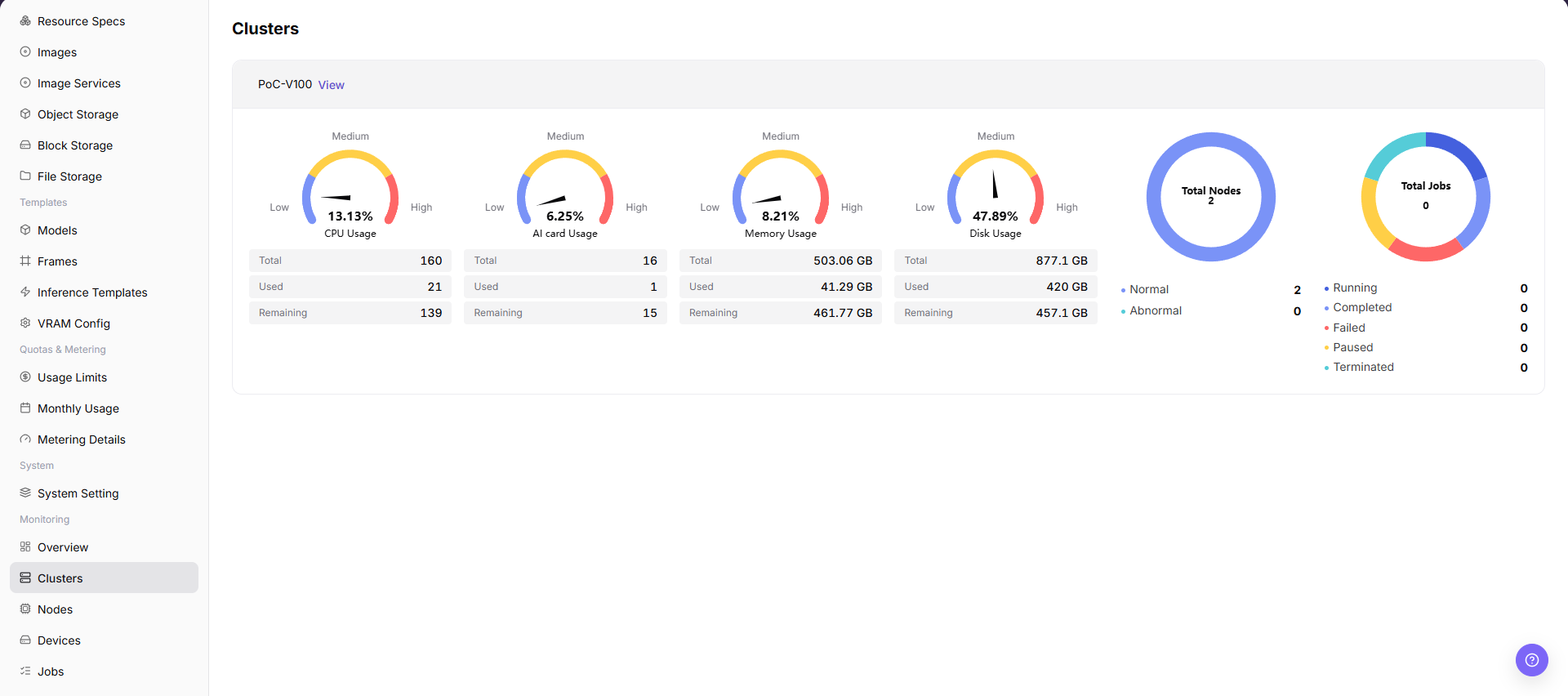

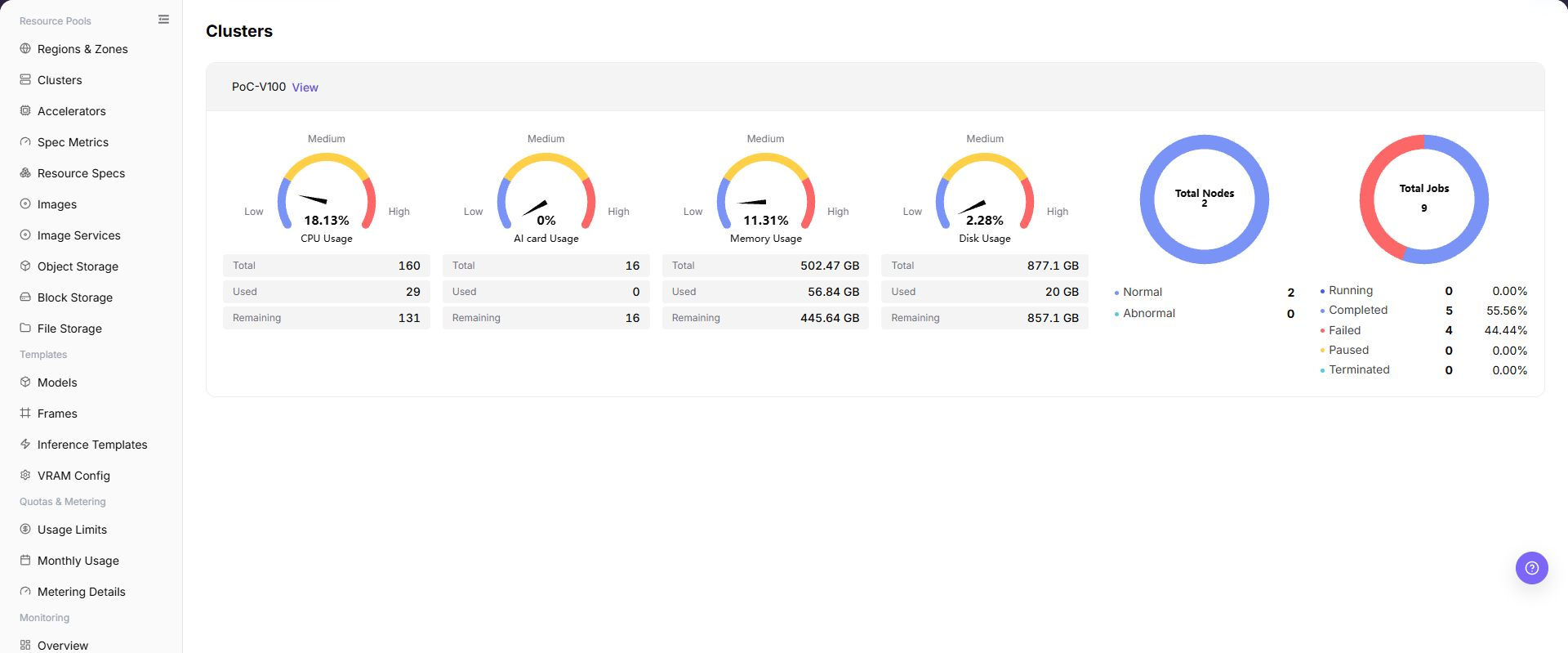

The following figure shows the cluster statistics page.

Main Operations

Filter and View Cluster Statistics

1. Go to AI Infrastructure > On-Prem > Monitoring > Cluster Statistics.
2. Confirm the region and resource pool in the upper-right corner, and filter by cluster name, resource type, or time range.
3. View the cluster list and overall running status, and verify cluster name, region/AZ, node count, device count, and resource usage level.
4. Review CPU, memory, accelerator, storage, node status, and job-related statistics to identify insufficient resources, abnormal nodes, or unavailable devices.

Investigate Abnormal Cluster Metrics

1. When cluster resource utilization shows high watermarks or abnormal status, note the cluster name and timestamp.
2. Keeping the same time range, navigate via the left menu to Node Statistics or Device Monitoring to check specific nodes and hardware health.
3. Cross-reference with Job Monitoring to determine whether the anomaly is caused by single hardware failure, uneven node load, or sudden high-load training/inference jobs.
4. If scheduling adjustments or node isolation are required, coordinate with platform operations rather than modifying underlying resources directly.

Key Focus

• Whether cluster status is available.
• Whether GPU, CPU, memory, and disk usage rates are abnormal.
• Whether jobs are concentrated on a small number of clusters.

Parameter Quick Reference

Field Name	Required	Field Type	Example	Description
Cluster Name	Yes	Text	cluster-prod-a	Locates the monitored cluster object.
Region / AZ	Conditionally required	Drop-down	Wuhan / AZ A	Limits the resource location to which the cluster belongs.
Node Count	System-generated	Number	10	Shows the number of nodes included in monitoring statistics for the cluster.
Device Count	System-generated	Number	80	Shows the number of accelerators or other devices included in monitoring statistics for the cluster.
CPU Usage	System-generated	Percentage	70%	Shows the CPU resource usage level of the cluster.
Memory Usage	System-generated	Percentage	68%	Shows the memory resource usage level of the cluster.
Accelerator Usage	System-generated	Percentage	65%	Shows the GPU, NPU, or other accelerator resource usage level.
Storage Usage	System-generated	Percentage	72%	Shows the storage resource usage level of the cluster.
Node Status	System-generated	Status	Normal	Shows whether nodes are online, abnormal, or unavailable.
Job Count	System-generated	Number	32	Shows the number of running, queued, or abnormal jobs in the cluster.
Time Range	Conditionally required	Date range	Last 1 hour	Controls the query window for statistic cards, trend charts, and list data.
Resource Watermark	System-generated	Percentage	GPU 78%	Displays usage ratio of CPU, memory, GPU/NPU, and other resources.
Health Status	System-generated	Status	Healthy	Shows whether the cluster has unavailable, alert, or collection abnormal states.
GPU Usage	System-generated	Percentage	65%	Determines whether accelerator resources are close to bottleneck.
Update Time	System-generated	Date time	2026-07-06 10:00	Determines whether cluster monitoring data is timely.

Pitfalls

• Normal cluster watermarks do not mean every node or device is available.
• Use the same time range and metric units for cross-cluster comparison.
• Proceed to the Node Statistics and Device Monitoring pages when a cluster is abnormal.
• Cluster statistics may have collection latency. Do not judge faults based only on a single instant metric.
• Abnormal cluster usage should be investigated together with nodes, devices, jobs, and scheduling events.
• Do not write real cluster IDs, node names, device IDs, resource pool IDs, tenant information, internal metric keys, or test data in the document.

Configuration Rules and Impact

• Cluster status is used for capacity judgment: If the cluster is healthy but watermarks are high, look at expansion or scheduling first. If abnormal, troubleshoot cluster access and collection first.
• View resource watermarks by type: CPU, memory, GPU/NPU, and storage bottlenecks mean different things. Do not look only at a single total score.
• Fix the time range for cross-cluster comparison: Different time windows affect peak values, averages, and exception statistics.
• Unavailable clusters affect instance creation: When users fail to create instances, also check cluster health, specification association, and quotas.

Result Validation

Check Item	Success Signal	If Abnormal
Page load	Clusters charts or lists are visible	Check monitoring permission and whether collection is available in the selected region
Scope	Time range, region, and object count match the investigation	Clear filters and restore them one at a time to avoid mixed scopes
Freshness	Update time is within the expected collection interval	Check collection interval, connection, and alerts in system or monitoring configuration
Correlation	An abnormal metric can be linked to a cluster, node, device, or job	Keep the same time range and cross-check adjacent monitoring pages and object details

FAQ

No Data on Clusters

Symptom:

The page opens, but charts or lists are empty.

Possible Causes:

• No job ran in the selected time.
• collection is unavailable in the region.
• the role lacks metric permission.

Solution:

1. Expand the time range and reset filters
2. verify regional monitoring capability
3. compare an adjacent monitoring page.

Clusters Is Not Updating

Symptom:

The data does not change for an extended period.

Possible Causes:

• The next collection cycle has not arrived.
• the collector is abnormal.
• the page is cached.

Solution:

1. Check update time
2. inspect collector status and alerts
3. refresh with the same time range.

Clusters Differs from Adjacent Pages

Symptom:

The same object has different values on two monitoring pages.

Possible Causes:

• Aggregation granularity differs.
• time range or time zone differs.
• filters target different objects.

Solution:

1. Align time range and time zone
2. verify aggregation scope
3. clear and restore filters one at a time.

Unable to Locate Target Object in Related Monitoring

Symptom:

The metric or details entry does not lead to the expected object.

Possible Causes:

• The object ended or was removed.
• the role cannot see it.
• relationship identifiers differ.

Solution:

1. Record object and time
2. check its list state
3. ask the Operator to verify visibility.

A Spike Cannot Be Reproduced

Symptom:

A spike was recorded, but current details are normal.

Possible Causes:

• The spike was brief.
• sampling is coarse.
• the job has ended.

Solution:

1. Lock the spike interval
2. compare job and node events
3. retain a sanitized screenshot and object identifier.

Notes

• Cluster health does not mean all services are normal. Combine it with instance and job status.
• Fix the time range when comparing across clusters.
• Do not expose internal cluster names, API Server, or network information.
• Before expansion, migration, or fault judgment, cross-check with node statistics, device monitoring, job monitoring, and scheduling events.
• Documentation examples must not include real cluster IDs, node names, device IDs, resource pool IDs, tenant information, internal metric keys, or test data.

Next Steps

1. When watermarks are high, enter node statistics to locate hotspot nodes.
2. When accelerators are tight, enter device monitoring to confirm model and VRAM.
3. When a cluster is unavailable, return to resource pool cluster management to check access status.
