Clusters

Feature Overview

Item	Content
Applicable Role	Model Provider and Model Consumer
Navigation Path	AI Infra(On-Prem) > Monitoring > Clusters
Page Route	/powerone/user-monitor/cluster
Managed Object	Configuration, status, and relationships on Clusters

Beginner Explanation

Cluster statistics are like a capacity table for the user-visible resource pool. They help determine how much cluster capacity, node scale, and accelerator resources are still available in the current region for tasks.

Terms

Term	Description
Cluster Name	Kubernetes cluster identifier that hosts instances, jobs, and resource scheduling.
Health Status	Overall cluster availability, usually determined by collection, node, and scheduling status together.
Total GPUs	Number of accelerators visible or included in statistics for the current cluster.

Recommended Operation Order

Confirm prerequisites for Cluster resource trends, capacity, and health status within the user-visible scope, follow Main Operations, run Result Validation, and continue to the next page.

First-Time User Notes

Confirm that the task involves Configuration, status, and relationships on Clusters, and then follow the recommended order. If fields or state differ from expectations, check prerequisites before continuing downstream.

Prerequisites

1. The current account can view cluster statistics in the target region.
2. The operator has included related clusters in the user-side monitoring scope.
3. Cluster monitoring data has been synchronized to the user-side page.
4. The current account has permission to view resource watermarks or health status.

Page Description

Use this page to inspect cluster resource trends, capacity, and health state within the current user's scope.

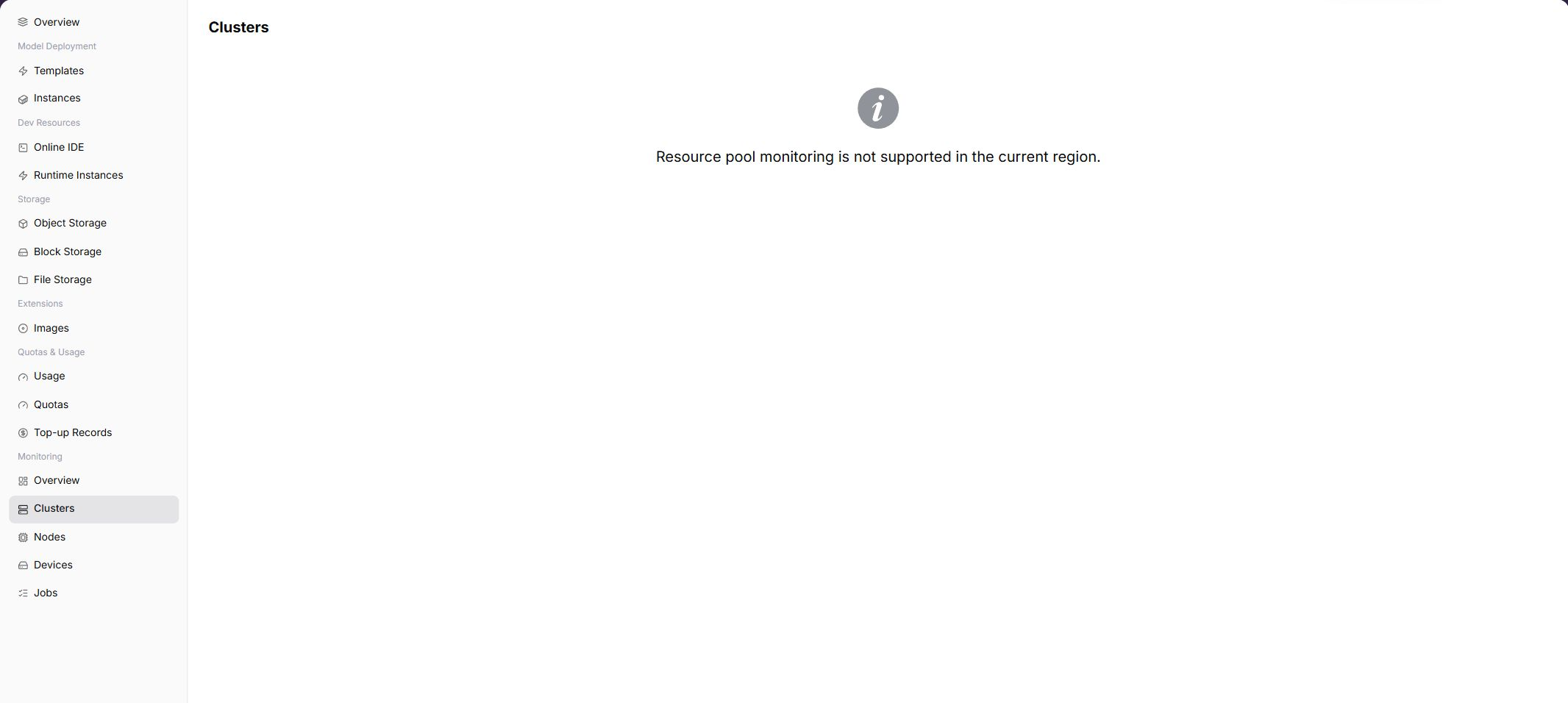

The page displays cluster statistics capability for the selected region. When the capability is opened, users can view metric trends, list data, or key status. When the capability is not opened, the page shows a capability prompt.

Expected Page Elements When Capability Is Open

Page Element	Example	Description
Cluster List	prod-wuhan-gpu-1	Displays clusters within the user-visible scope.
Cluster Watermark	GPU 12/32, CPU 60%	Determines whether capacity is tight.
Available Capacity	A100 remaining 4 cards	Determines whether it is suitable to continue submitting jobs.
Health Status	Available / Abnormal / Under maintenance	Determines whether the cluster is suitable for new instances.
Capacity Trend	Resource usage in the last 24 hours	Determines short-term resource pressure.

Main Operations

View Cluster Statistics

1. Go to AI Infrastructure > On-Prem > Monitoring > Cluster Statistics.
2. Confirm the region and time range in the upper-right corner, and filter by cluster name or status.
3. View the cluster list and operational status, and verify available capacity, CPU/GPU watermarks, and health status.
4. If monitoring capability is not opened, return to the instance details page to view logs, events, and status.

Investigate Abnormal Cluster Metrics

1. When cluster resource watermarks approach full capacity or enter maintenance status, record the cluster name and load level.
2. Switch to Node Statistics or Job Monitoring to inspect individual node utilization and current queued jobs.
3. If persistent cluster capacity shortages prevent new instances from being created, contact the administrator to request quota adjustments or allocate alternative resource pools.

Key Focus When Capability Is Open

• Whether cluster health status is normal.
• Whether node count, total GPUs, and total CPUs match expectations.
• Whether resource watermarks are close to thresholds that affect new task creation.

Parameter Quick Reference

Field Name	Required	Field Type	Example	Description
Cluster Name	Yes	Text	cluster-a	Locates the user-visible cluster object.
Region	Conditionally required	Drop-down	Central China Zone 1	Limits the region to which the cluster belongs.
Node Count	System-generated	Number	24	Number of nodes included in statistics in the cluster.
Total GPUs	System-generated	Number	96	Total visible accelerators in the cluster.
Total CPUs	System-generated	Number	1536 Core	Total CPU capacity of the cluster.
Health Status	System-generated	Status	Healthy	Shows whether the cluster is available, alerted, or collection abnormal.

Pitfalls

• High cluster watermarks do not necessarily mean your task will fail. Also check target specification and quota.
• When cluster health is abnormal, do not repeatedly submit the same job. Confirm platform events first.
• Do not mix resources from different regions in the same judgment.

Troubleshooting Information to Prepare

When cluster data is abnormal, prepare the following information to distinguish cluster onboarding, resource watermark, and collection issues:

Information	Example	Purpose
Cluster name	cluster-prod-a	Locates the target cluster.
Region / Availability zone	Wuhan / wuhan-1	Confirms the resource ownership scope.
Node count	32	Determines whether cluster capacity matches the expectation.
Health state	Abnormal / High watermark / No data	Distinguishes capacity issues from collection issues.
Related job time	2026-07-13 10:00	Aligns job submission with the monitoring curve.

Result Validation

Check Item	Success Signal	If Abnormal
Page load	Clusters charts or lists are visible	Check monitoring permission and whether collection is available in the selected region
Scope	Time range, region, and object count match the investigation	Clear filters and restore them one at a time to avoid mixed scopes
Freshness	Update time is within the expected collection interval	Check collection interval, connection, and alerts in system or monitoring configuration
Correlation	An abnormal metric can be linked to a cluster, node, device, or job	Keep the same time range and cross-check adjacent monitoring pages and object details

FAQ

No Data on Clusters

Symptom:

The page opens, but charts or lists are empty.

Possible Causes:

• No job ran in the selected time.
• collection is unavailable in the region.
• the role lacks metric permission.

Solution:

1. Expand the time range and reset filters
2. verify regional monitoring capability
3. compare an adjacent monitoring page.

Clusters Is Not Updating

Symptom:

The data does not change for an extended period.

Possible Causes:

• The next collection cycle has not arrived.
• the collector is abnormal.
• the page is cached.

Solution:

1. Check update time
2. inspect collector status and alerts
3. refresh with the same time range.

Clusters Differs from Adjacent Pages

Symptom:

The same object has different values on two monitoring pages.

Possible Causes:

• Aggregation granularity differs.
• time range or time zone differs.
• filters target different objects.

Solution:

1. Align time range and time zone
2. verify aggregation scope
3. clear and restore filters one at a time.

Unable to Locate Target Object in Related Monitoring

Symptom:

The metric or details entry does not lead to the expected object.

Possible Causes:

• The object ended or was removed.
• the role cannot see it.
• relationship identifiers differ.

Solution:

1. Record object and time
2. check its list state
3. ask the Operator to verify visibility.

A Spike Cannot Be Reproduced

Symptom:

A spike was recorded, but current details are normal.

Possible Causes:

• The spike was brief.
• sampling is coarse.
• the job has ended.

Solution:

1. Lock the spike interval
2. compare job and node events
3. retain a sanitized screenshot and object identifier.

Notes

• Do not expose real cluster names, internal domains, or node IPs in screenshots.
• Cluster health status and single instance status may not be synchronized. Judge together with logs and events.
• When capacity is insufficient, confirm the target specification first instead of looking only at total cluster watermarks.

Next Steps

1. Go to node statistics to check whether a small number of nodes caused the cluster exception.
2. Go to device monitoring to confirm whether GPU/NPU resources are sufficient.
3. Before creating tasks, judge together with resource quotas and specification availability.
