Runtime Images

This task registers a cloud image used by inference frameworks. Image availability directly affects whether downstream services can start.

Target Outcome

The target cloud environment can pull the image, and inference-framework configuration can select it.

Applicable Roles

• Platform Operator

Before You Start

• Confirm the full repository address, controlled version tag, and supported framework types.
• Confirm that the target cloud environment has network access and pull permission for the image repository.

Procedure

Add an Image

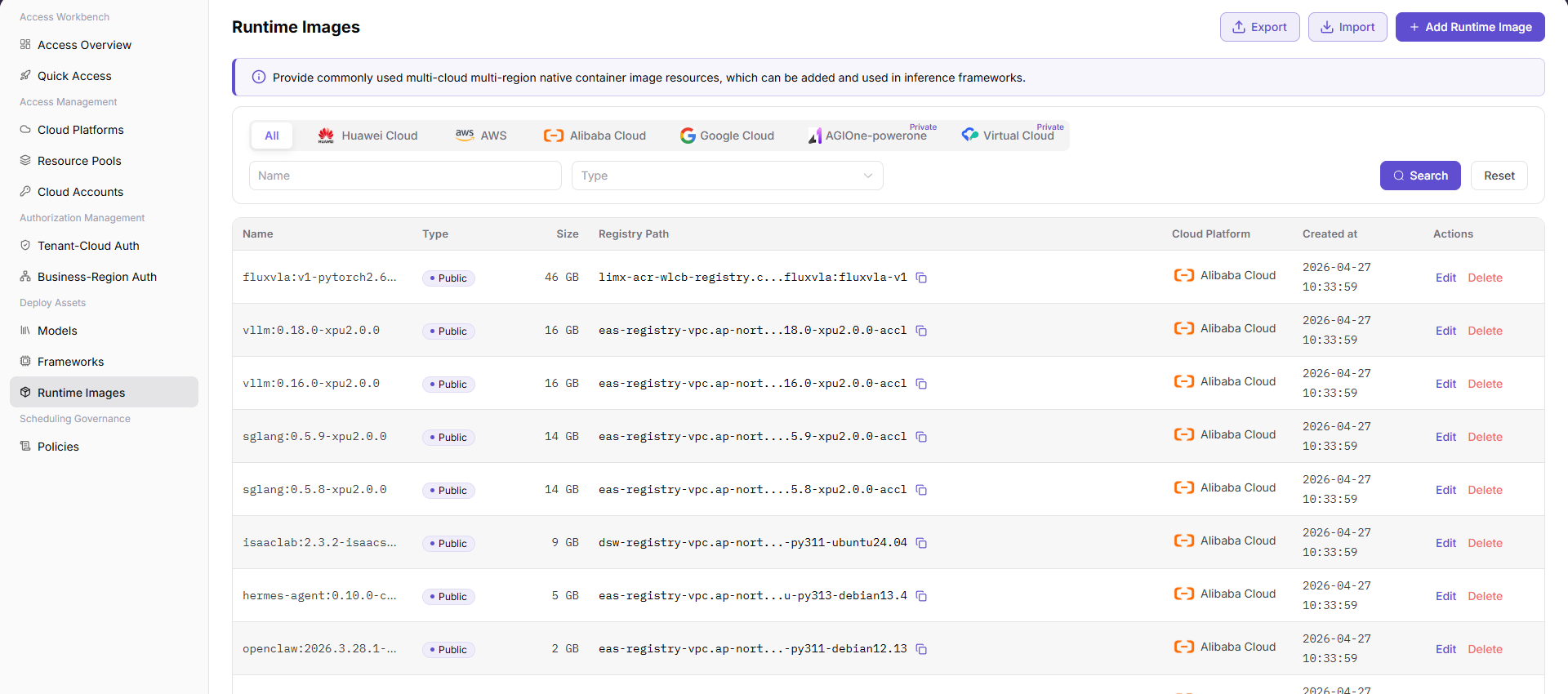

1. Go to Deploy Assets > Runtime Images.

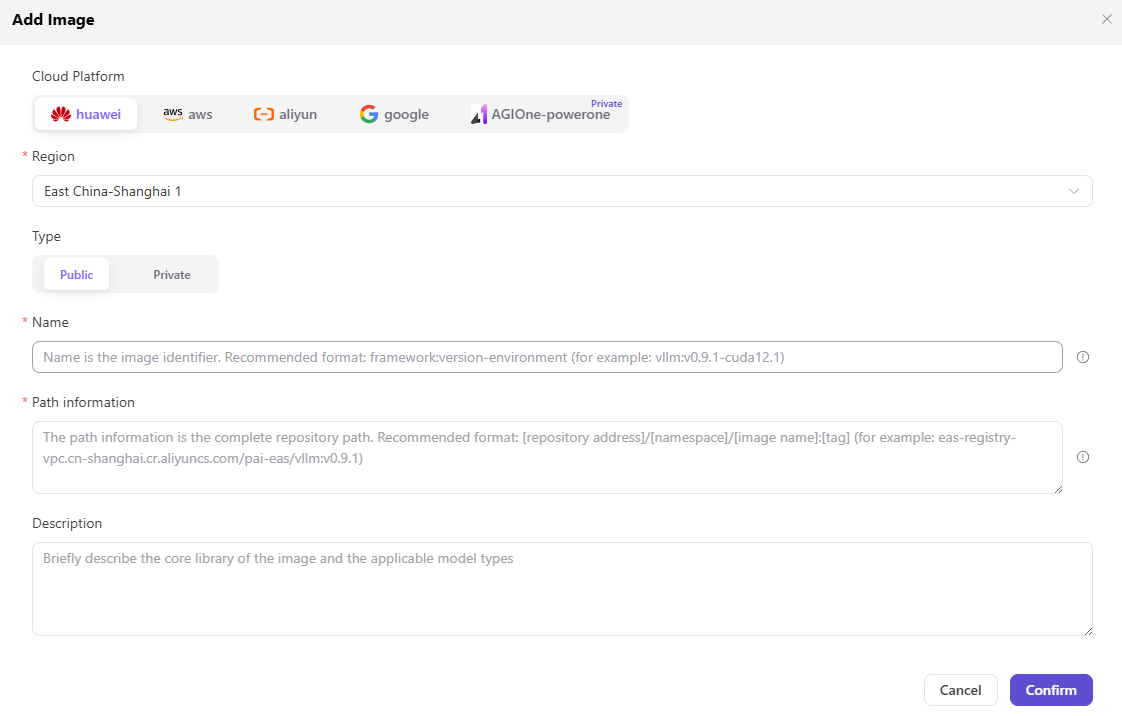

2. Select Add Image.

3. Complete the form:
   • Image Name: maintain Simplified Chinese and English values separately.
   • Image Repository Address: enter the complete repository path, such as registry.example.com/ai/vllm.
   • Image Tag: enter a controlled version tag, such as 0.9.1-modelgallery.
   • Framework Type: select at least one compatible type, such as vllm, tgi, sglang, ollama, asr, tts, sdk-stable-diffusion, or comfyui.
   • Built In: select whether the image is provided as a platform built-in image.
   • Description: maintain optional localized usage descriptions.
4. Select Save. Select Cancel to discard the form.

Parameters

Field	Type	Example	Description
Image Name	Text	vllm in both language tabs	Required; maintain each language independently
Image Repository Address	Text	registry.example.com/ai/vllm	Required; complete image-repository path
Image Tag	Text	0.9.1-modelgallery	Required; controlled image-version tag
Framework Type	Multi-select	vllm, tgi, sglang	Required; select at least one compatible type
Built In	Radio	Yes / No	Required; identifies whether the platform provides the image
Description	Text	vllm 0.9.1 modelgallery	Optional localized description

Completion Checklist

Purpose: These are the exit criteria for this task. If any check fails, follow the troubleshooting section before continuing.

Check	Pass Criteria
1	Repository address and tag uniquely identify a controlled image.
2	The target cloud environment can pull the image.
3	Inference-framework configuration can select the image.

Troubleshooting

Symptom	Check First
Image pull fails	Repository address, tag, pull permission, network, and architecture
Image pulls but the service fails to start	Image content, framework compatibility, startup command, and port
