Single-Node Multi-Card Multi-Model Deployment Best Practice

Document Information

Version: v1.0 Updated: 2026-07-15

This guide is intended for POC, private deployment delivery, and on-premises compute consolidation scenarios. It explains how to onboard a multi-card NPU/GPU node into AGIOne as schedulable capacity, then use resource specs, tenant credits, inference templates, and model instances to validate multi-model deployment.

Applicable Scenarios

When a customer has only one or a few multi-card servers, the goal is usually more than starting a single model. The customer also needs to verify that the platform can divide limited compute into reusable resource packages so that different models, workloads, or tenants can share the hardware within explicit boundaries.

Scenario	Description
Multiple models on one node	Run multiple model instances on one multi-card NPU/GPU node.
POC capability validation	Validate resource onboarding, spec configuration, limit enforcement, model deployment, and resource isolation.
On-premises compute platform	Bring bare-metal or Kubernetes clusters under unified AGIOne scheduling and monitoring.
Standardized delivery	Capture models, frameworks, images, specs, and default parameters in inference templates.
New model trial	Validate a model that has not yet been templated by using a model instance or custom deployment.

This guide uses one eight-card NPU node hosting multiple models as an example. The same approach applies to GPU environments, but hardware, drivers, device plugins, and monitoring collection must be adjusted for the actual environment.

Capability Mapping

This practice primarily belongs to AI Infra On-Prem. It is separate from the main flows for model publishing, the model marketplace, and invocation billing. Define the resource supply and model runtime first, then connect the deployed service to the model invocation flow.

Goal	AGIOne Capability	Reference
Onboard Kubernetes clusters and nodes	Clusters, cluster nodes, and device monitoring	Clusters
Define selectable compute packages	Spec metrics, resource specs, and cluster-spec association	Resource Specs
Control resources available to a tenant	Tenant credits, quotas, and metering	Metering Details
Standardize model deployment	Inference templates, model configuration, frameworks, images, resource specs, and VRAM configuration	Inference Templates
Deploy and inspect model services	Model instances, instance status, logs, and access troubleshooting	Model Instances
Monitor resource health and capacity	Overview, cluster, node, device, and job monitoring	Monitoring Overview

Roles and Responsibilities

A single-node multi-card deployment mainly involves the Operator and End User roles. In this On-Prem workflow, the End User creates a model instance and can publish the running instance as a private model for the current tenant. The Provider role is not part of this private-model workflow; use the Provider role documentation for separate Provider-specific publishing scenarios.

Role	Responsibilities	Out of Scope
Operator	Onboard clusters, maintain accelerators, create resource specs, associate specs with clusters, configure tenant credits, maintain inference templates, and troubleshoot resource or scheduling issues.	Long-term management of application invocation logic on behalf of business users.
End User	Select templates, specs, and parameters within the authorized scope; create model instances; publish a running On-Prem instance as a private model for the current tenant; and view deployment status, logs, and invocation information.	Management of the underlying Kubernetes environment, physical nodes, resource specs, or platform-level tenant credits.
Provider	Not part of the On-Prem private-model publishing workflow described in this guide. Follow the Provider role documentation for separate Provider-specific publishing scenarios.	Onboarding platform resource pools or clusters, configuring tenant credits, or publishing an End User's running On-Prem instance as a private model.
Admin	Manage tenants, users, roles, and basic platform access settings.	Day-to-day compute operations and model deployment.

A simple way to distinguish the roles in this guide is: the Operator prepares usable resources and templates, and the End User creates runnable model instances and can publish them as private models for the current tenant. The Provider is outside this On-Prem private-model workflow.

Recommended Resource Plan

Resource Spec Design

A resource spec is more than a card count. In AGIOne, it should define CPU, memory, the AI accelerator metric, accelerator count, status, and available cluster associations. For an eight-card node, prepare at least one-card, two-card, and four-card options.

Example Spec	Accelerator Count	Suggested CPU / Memory	Typical Use
npu-1c-small	1 card	Reserve at least the model's minimum requirement.	Small models, functional tests, lightweight inference, and Notebook validation.
npu-2c-standard	2 cards	Size for a medium model and expected concurrency.	Medium models and regular inference services.
npu-4c-large	4 cards	Size for a larger model and its context length.	Large-model validation and core inference services.

Do not create only one eight-card spec during a POC. That setup can prove that one large model starts, but it cannot validate resource partitioning, multi-model coexistence, tenant-limit boundaries, or scheduling failure boundaries.

Example Deployment Combinations

Deployment Combination	Resource Use	Validation Goal
One four-card model + one two-card model + two one-card instances	8 cards	Validate that large, medium, and small specs coexist.
Two four-card models	8 cards	Validate two large models running in parallel.
Four two-card models	8 cards	Validate multiple medium models sharing one resource pool.
One four-card model + two two-card models	8 cards	Validate mixed-spec deployment and capacity exhaustion.

Tenant Credit Design

Tenant credits define the amount of resource that a tenant can consume from the resource pool. Sufficient credits do not guarantee that an instance can be created. The selected spec, cluster capacity, template constraints, and scheduling policy must also be satisfied.

Example Tenant	Limit	Validation Goal
Tenant A	4 cards	Validate one four-card model or two two-card models.
Tenant B	2 cards	Validate a medium credit boundary.
Tenant C	1 card	Validate deployment with a small spec.

Retain both insufficient-limit and exhausted-pool failure scenarios in the POC. The first proves that limit enforcement works; the second proves that AGIOne does not continue creating instances when the underlying capacity is unavailable.

Implementation Workflow

1. Operator Onboards the Cluster and Devices

Resource onboarding is the start of the workflow. Resource specs, tenant credits, and model instances have no scheduling foundation until the Kubernetes cluster and its NPU/GPU nodes are connected.

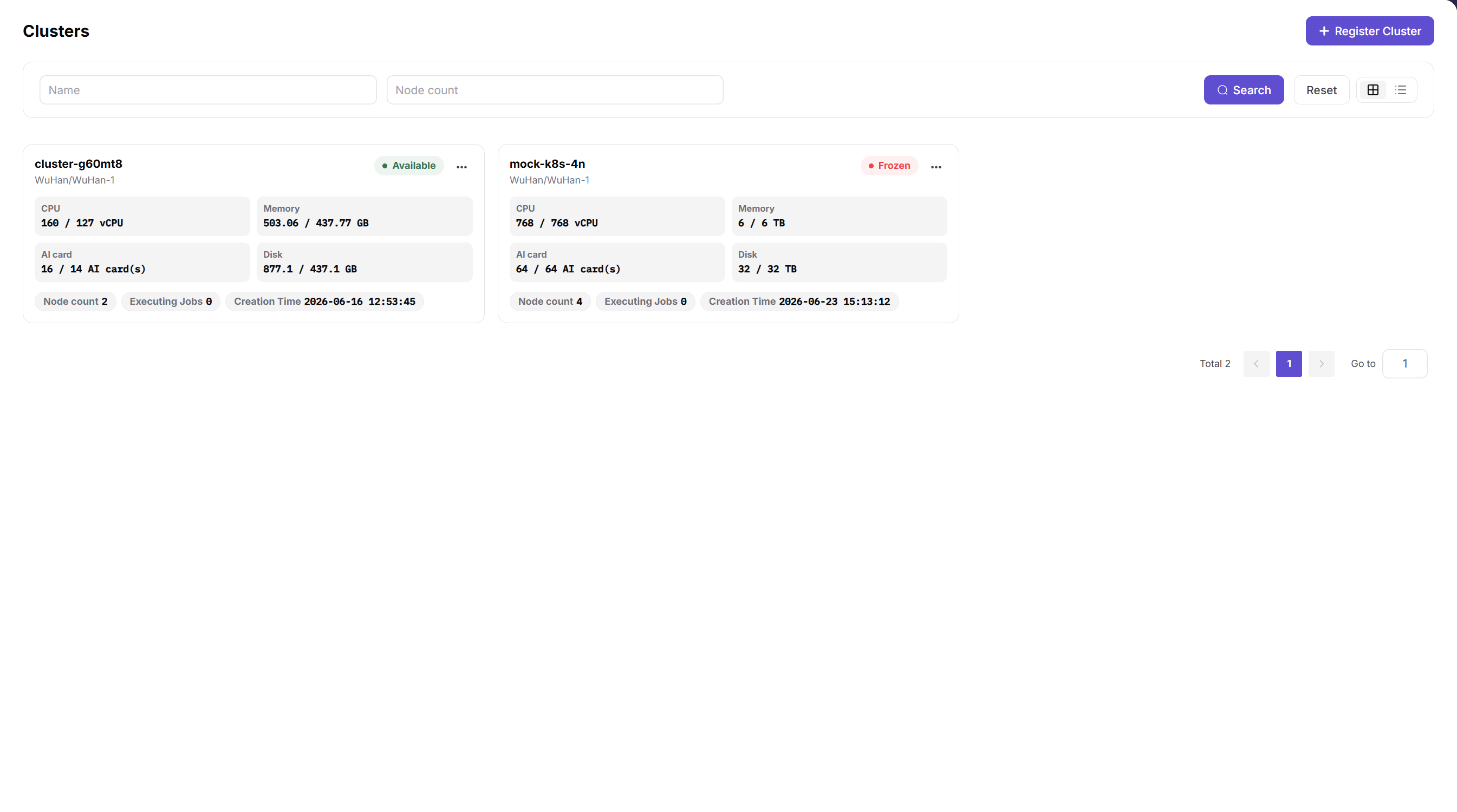

The Clusters page above lets the Operator verify the target cluster status, CPU, memory, AI card capacity, and node count before continuing.

Item	Details
Role	Operator
Navigation	Resource Pools > Clusters
Input	Kubernetes connection information, node resources, device plugins, and monitoring collection capability
Output	An on-premises compute cluster that AGIOne can schedule and monitor

Key checks:

1. The cluster appears in the list and its status matches the expected state.
2. Cluster nodes are visible and their status is Ready or matches the delivery expectation.
3. Device monitoring shows the GPU/NPU model, count, memory, utilization, and health state.
4. The target cluster is associated with usable resource specs before it hosts workloads.

2. Operator Creates Resource Specs and Associates Them with the Cluster

A resource spec defines the package that a model instance, Online IDE, or runtime instance can request. After creating a spec, associate it with the target cluster. Otherwise, End Users may not be able to select it when creating an instance.

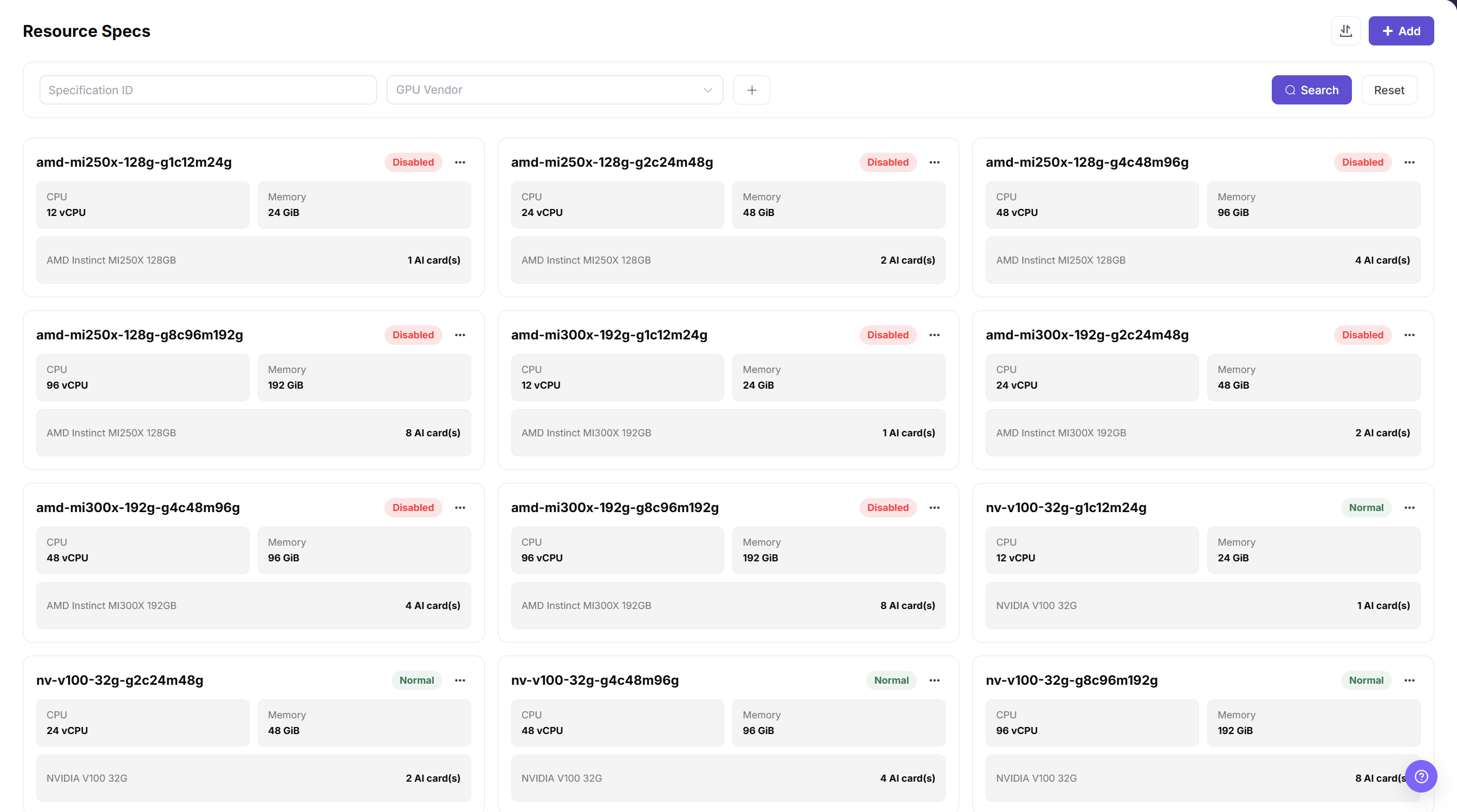

The Resource Specs page above helps verify that one-card, two-card, and four-card combinations have been created with the correct accelerator type, CPU, and memory.

Item	Details
Role	Operator
Navigation	Resource Pools > Resource Specs; Resource Pools > Clusters > Cluster Details
Input	CPU, memory, AI accelerator metric, accelerator count, and spec name
Output	Resource specs that End Users can select when creating model instances

Key checks:

1. The accelerator metric in the spec matches the resource key reported by the cluster.
2. The spec name identifies the accelerator type, count, and purpose for easier troubleshooting.
3. The spec appears under Associated Specifications in the target cluster details.
4. End Users can select the spec in the intended region, availability zone, or cluster scope.

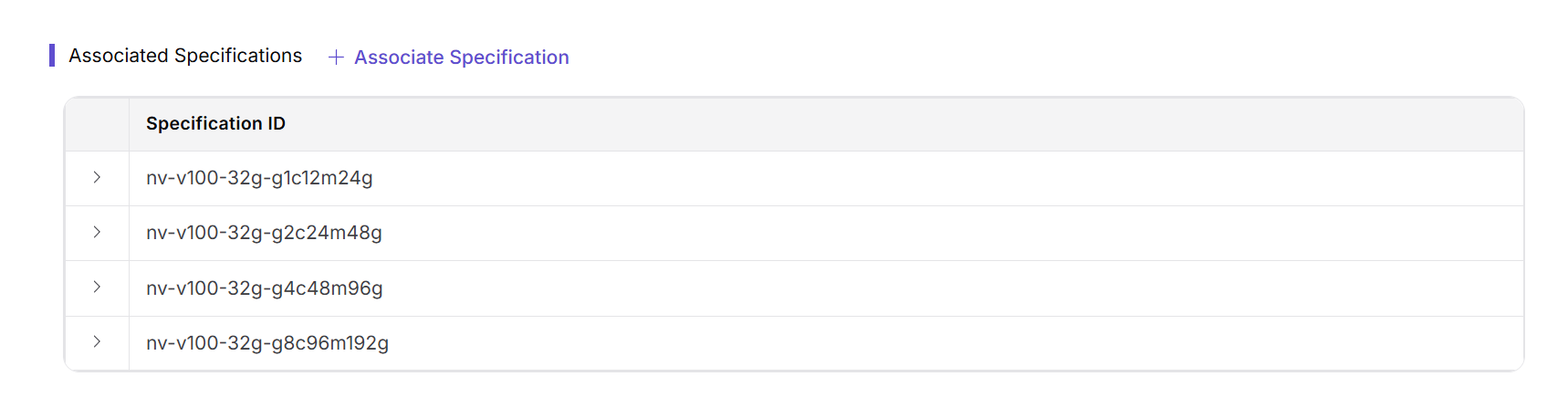

The Associated Specifications section above confirms which specs the cluster can schedule. If a spec exists but is unavailable to an End User, check this association first.

3. Operator Configures Usage Limits

Tenant credits control the CPU, GPU/NPU, memory, and other resources available to a tenant. A resource spec controls the resource used by one instance; tenant credits control the tenant's aggregate resource use. Both conditions must be satisfied.

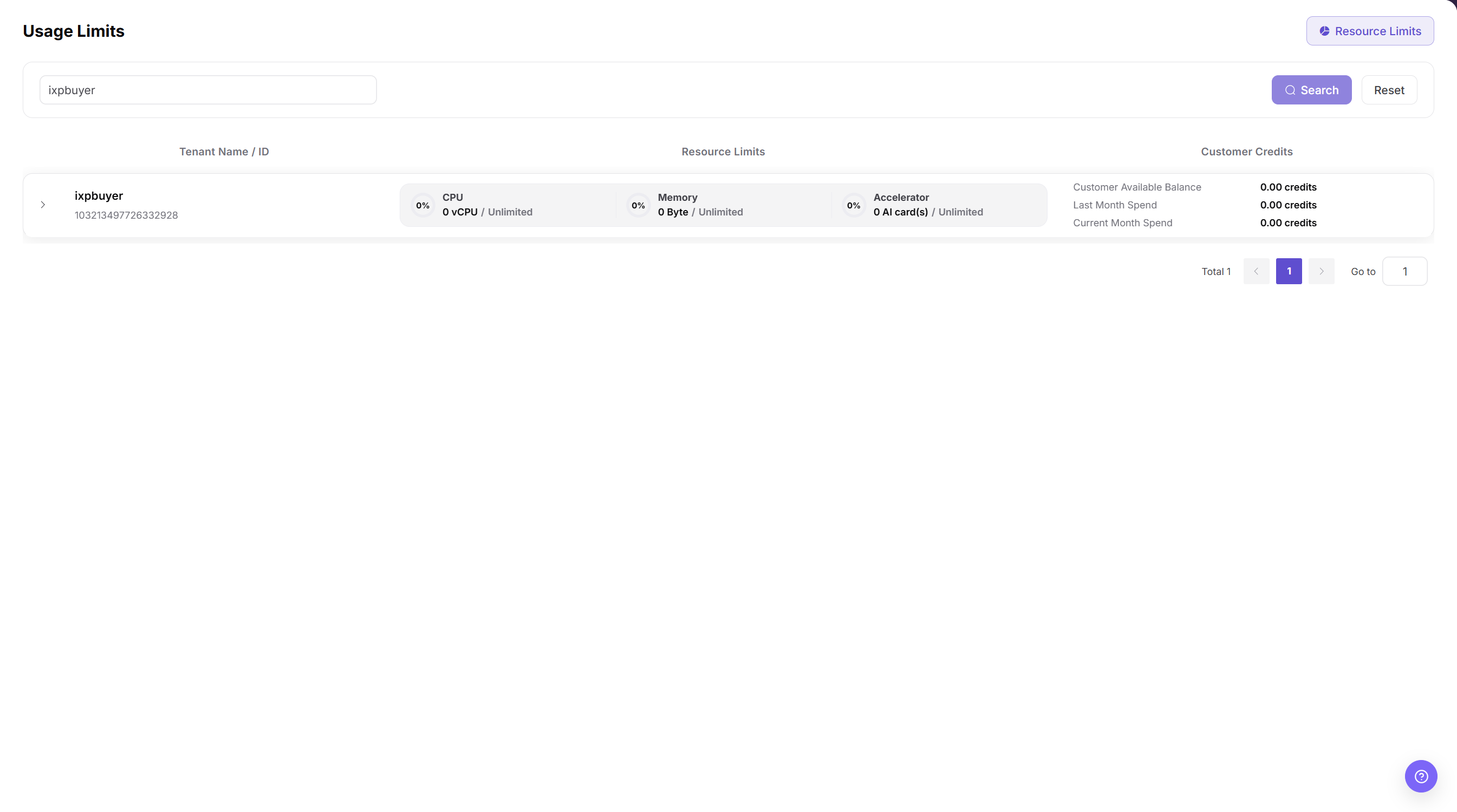

The tenant-credit list, labeled Usage Limits in the current English UI, shows whether the target tenant has sufficient CPU, accelerator, and memory credits for the POC plan.

Concept	Purpose
Resource spec	Controls how much resource one model instance uses.
Tenant credits	Control how much resource a tenant can use from the resource pool in total.
Cluster capacity	Determines whether schedulable physical capacity is still available.

Validation examples:

Action	Expected Result	Explanation
Tenant A uses a four-card limit to create one four-card instance.	Success	Total use remains within the limit.
Tenant A uses a four-card limit to create two two-card instances.	Success	Aggregate use is four cards.
Tenant A creates another one-card instance after using all four cards.	Failure	The tenant's accelerator credits are exceeded.
Create another instance after all eight cards in the pool are allocated.	Failure	The underlying capacity is exhausted.

4. Operator Creates Reusable Inference Templates

For standard models, use inference templates to package the model, framework, runtime image, resource specs, VRAM sizing, ports, environment variables, and default parameters. An End User then selects only the template, spec, and required parameters instead of managing the underlying startup command.

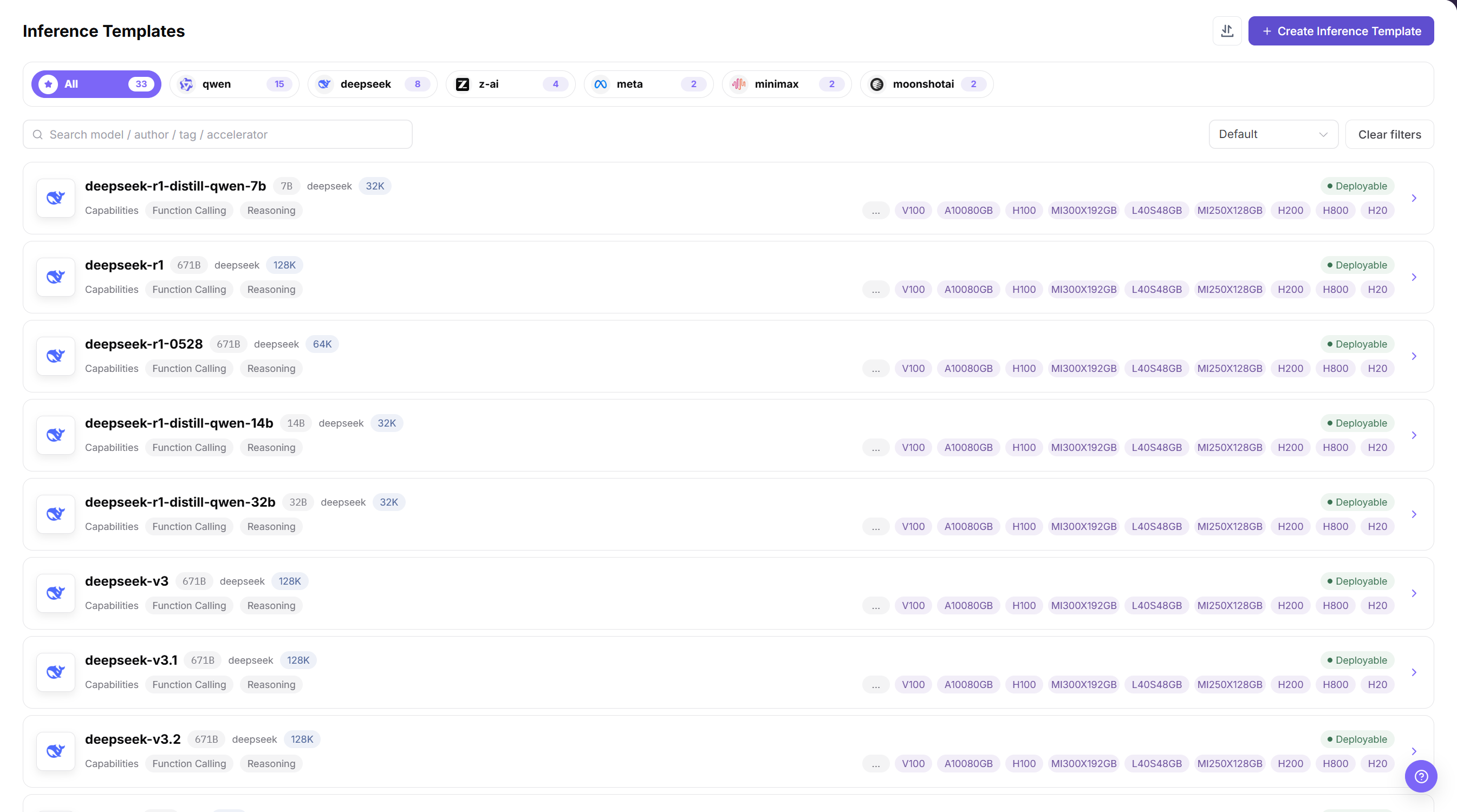

The Inference Templates page above shows the deployable model templates and supported accelerator options. Before publishing, verify that each template's model, framework, image, spec range, and visibility match the target tenant.

Item	Details
Role	Operator
Navigation	Templates > Inference Templates
Input	Model configuration, framework, runtime image, resource specs, VRAM configuration, and parameter form
Output	A model deployment template available to End Users

Checks before publishing:

1. The model, framework, image, and specs referenced by the template are available.
2. The template's spec range supports the one-card, two-card, and four-card deployment goals.
3. Default parameters do not contain real secrets, internal paths, or temporary test endpoints.
4. The visibility scope includes the target tenant or users.

5. End User Creates a Model Instance

After the Operator prepares the resources and templates, an End User can create a model instance within the authorized scope. AGIOne evaluates the template, spec, tenant credits, cluster capacity, and scheduling conditions together.

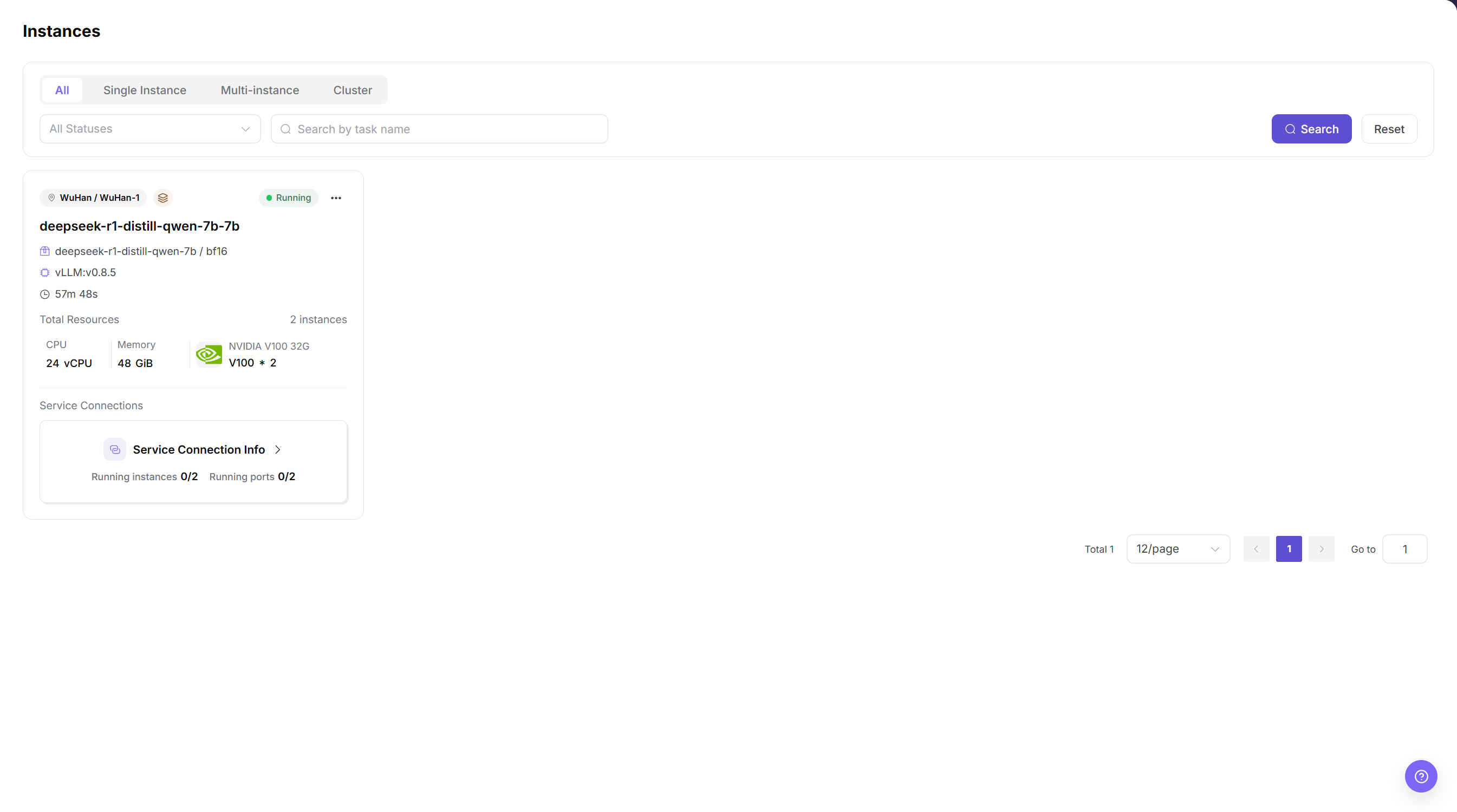

The Instances page above shows the instance type, runtime state, requested resources, and entry points for service connection information or subsequent troubleshooting.

Item	Details
Role	End User
Navigation	Model Deployment > Model Instances
Input	Inference template, resource spec, instance parameters, and access configuration
Output	A runnable, inspectable, and callable model service instance

Checks after deployment:

1. The model instance is created and reaches Running or another expected state.
2. Instance events and logs contain no image-pull, model-load, port, or health-check errors.
3. Device and job monitoring show resource use consistent with the selected spec.
4. The service access method works, and no credential or endpoint is exposed in plain text in the guide or screenshots.

6. Validate Instance Resource Isolation

A successfully created instance does not by itself prove that resource isolation is correct. During the POC, verify that the resources visible inside the instance match the selected spec.

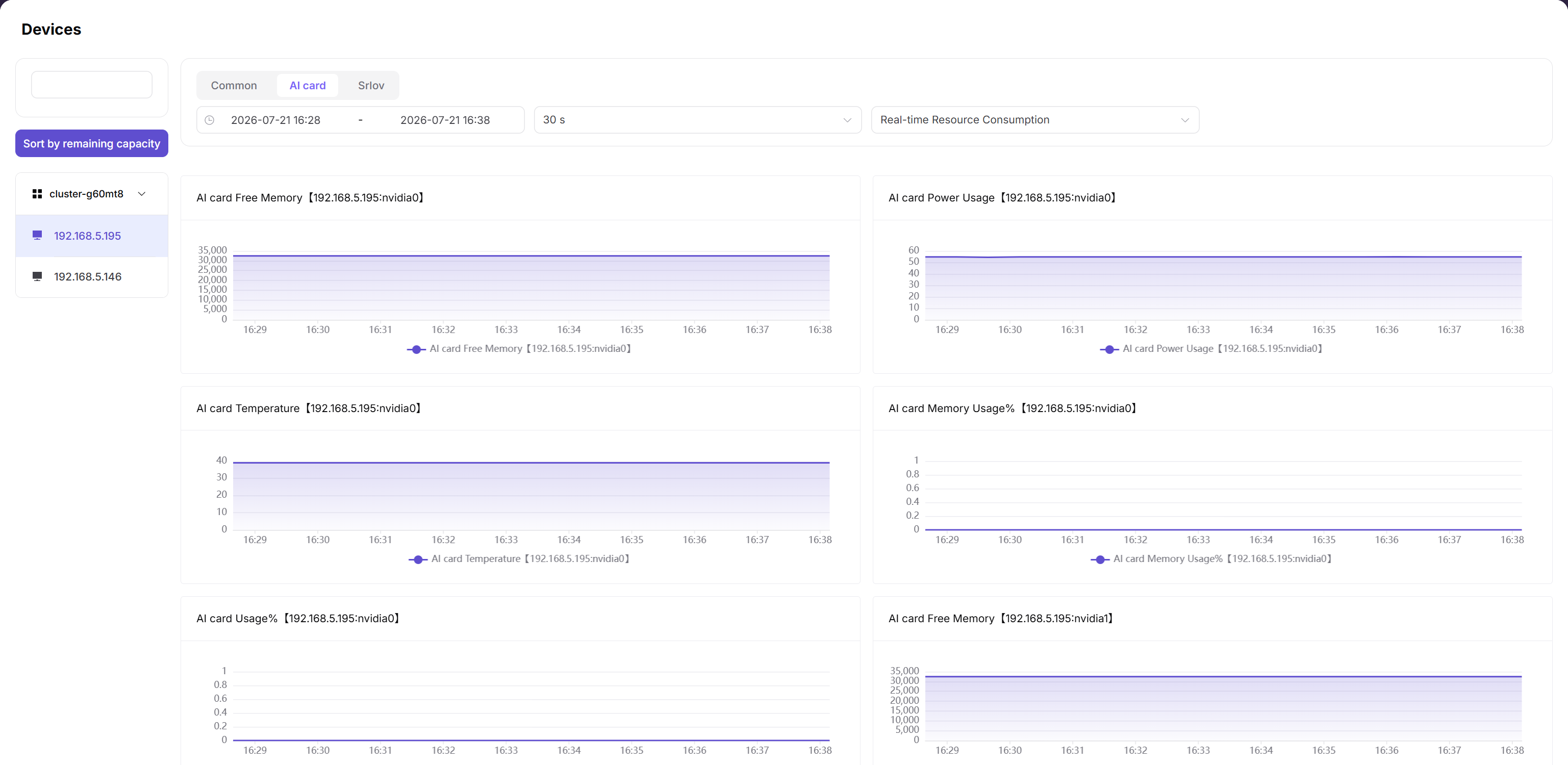

The Devices page above shows accelerator memory, power, temperature, and utilization. Compare these metrics with the commands run inside the instance to verify GPU/NPU allocation and health.

Resource Spec	Expected Resources Visible in the Instance
One-card spec	1 NPU/GPU card
Two-card spec	2 NPU/GPU cards
Four-card spec	4 NPU/GPU cards

Validation methods:

1. In a GPU environment, use nvidia-smi to inspect GPUs visible inside the instance.
2. In an NPU environment, use the hardware vendor's command to inspect NPUs visible inside the instance.
3. Retain the page state, device monitoring, job monitoring, and command output from inside the instance as POC evidence.

Do not present one hardware command as universal. Available tools differ by NPU vendor, driver, and container image; use the commands supported by the customer's actual environment.

POC Acceptance Checklist

Category	Acceptance Item	Expected Result
Cluster onboarding	Cluster registration and status synchronization	Success
Device discovery	NPU/GPU model, count, and status are visible	Success
Resource specs	One-card, two-card, and four-card specs are created and associated with the target cluster	Success
Tenant credits	The target tenant's credit configuration takes effect	Success
Template capability	The target End User can select the inference template	Success
Model deployment	Create a one-card model instance	Success
Model deployment	Create a two-card model instance	Success
Model deployment	Create a four-card model instance	Success
Credit boundary	Create another instance after exceeding the tenant's credits	Failure with an explainable message
Capacity boundary	Create another instance after the resource pool is exhausted	Failure with an explainable message
Resource isolation	Resources visible in the instance match the selected spec	Success
Invocation validation	An authorized user can invoke the model service	Success

FAQ

Why not create only one eight-card spec?

An eight-card-only configuration proves only that one large model can start. It does not validate multi-model coexistence, multi-spec scheduling, tenant-limit boundaries, or failure behavior after the resource pool is exhausted. Prepare at least one-card, two-card, and four-card options during a POC.

What is the difference between a resource spec and tenant credits?

A resource spec controls the resources used by one instance. Tenant credits control the total resources that the tenant can use. Even if a spec is selectable, instance creation should fail when the tenant has insufficient remaining credits.

The tenant has sufficient capacity, but the spec is not selectable. What should I check?

Check these locations first:

1. Confirm that the resource spec is enabled.
2. Confirm that the target cluster is associated with the resource spec.
3. Confirm that the inference template does not exclude the spec from its selectable range.

Where should I look first when deployment fails?

Troubleshoot in this order:

1. Model instance events and logs.
2. The model, framework, image, and parameters referenced by the inference template.
3. The association between the resource spec and the target cluster.
4. Tenant credits and remaining resource-pool capacity.
5. Cluster, node, and device monitoring.

What if a new model does not have an inference template yet?

First validate the model weights, image, and startup command by using a custom deployment or runtime instance. After the configuration is stable, have the Operator create an inference template to reduce repeated setup work.

Customer-Facing Explanation

You can explain the single-node multi-card deployment approach as follows:

AGIOne does not expose an entire multi-card server directly to one user. The Operator first onboards the Kubernetes cluster and its NPU/GPU nodes, then abstracts the underlying resources into one-card, two-card, and four-card resource specs. Tenant credits define the aggregate usage boundary.

On one eight-card node, users can select different specs based on model size. For example, one model can use four cards, another can use two cards, and two test instances can use one card each. AGIOne evaluates resource specs, tenant credits, cluster capacity, and template constraints together so that resources are explicitly allocated, reliably scheduled, and observable during troubleshooting.

For standard models, the Operator captures deployment experience in inference templates. New models can be validated with a custom deployment first and templated after they become stable. This approach improves utilization and makes POC evidence easier to review and deliver.
